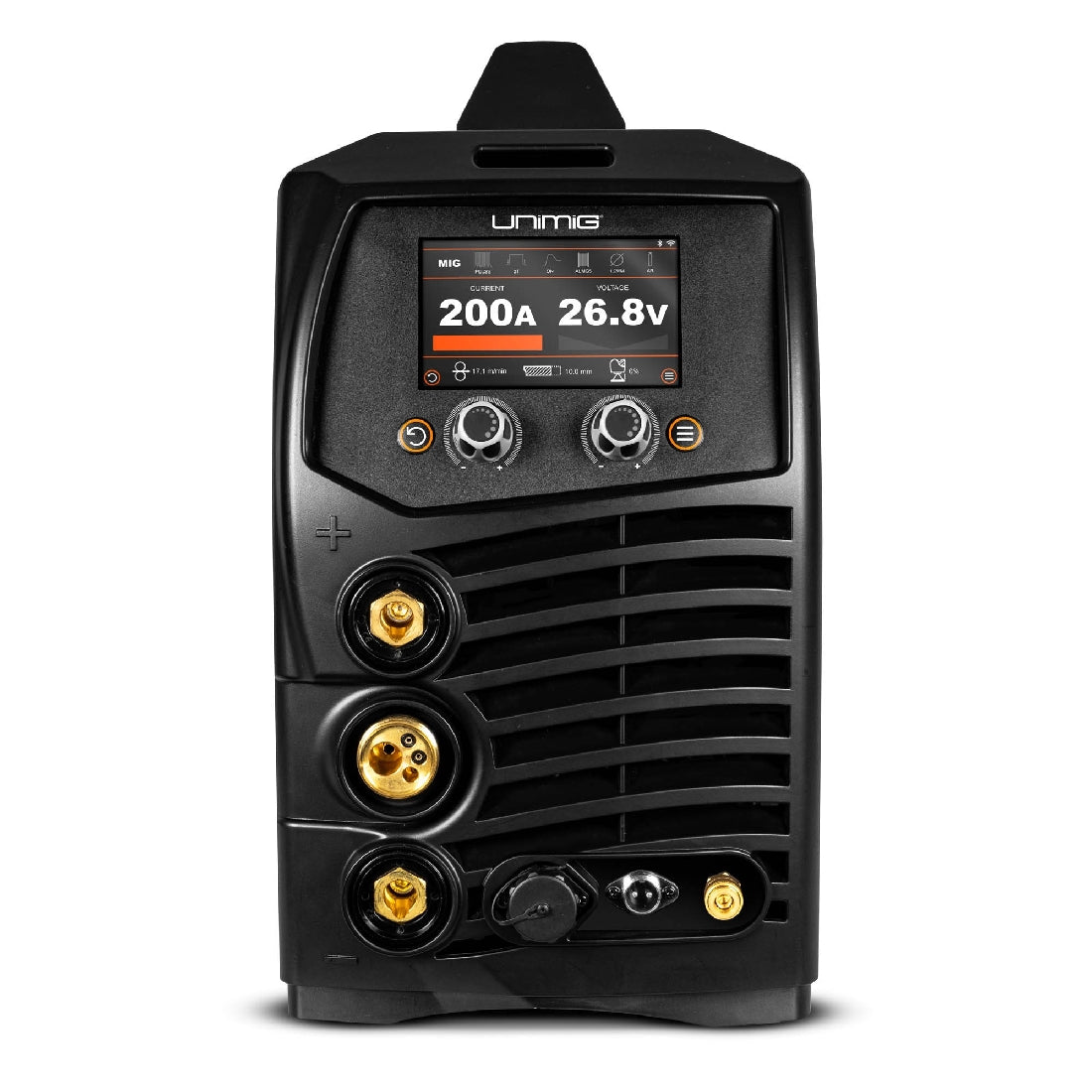

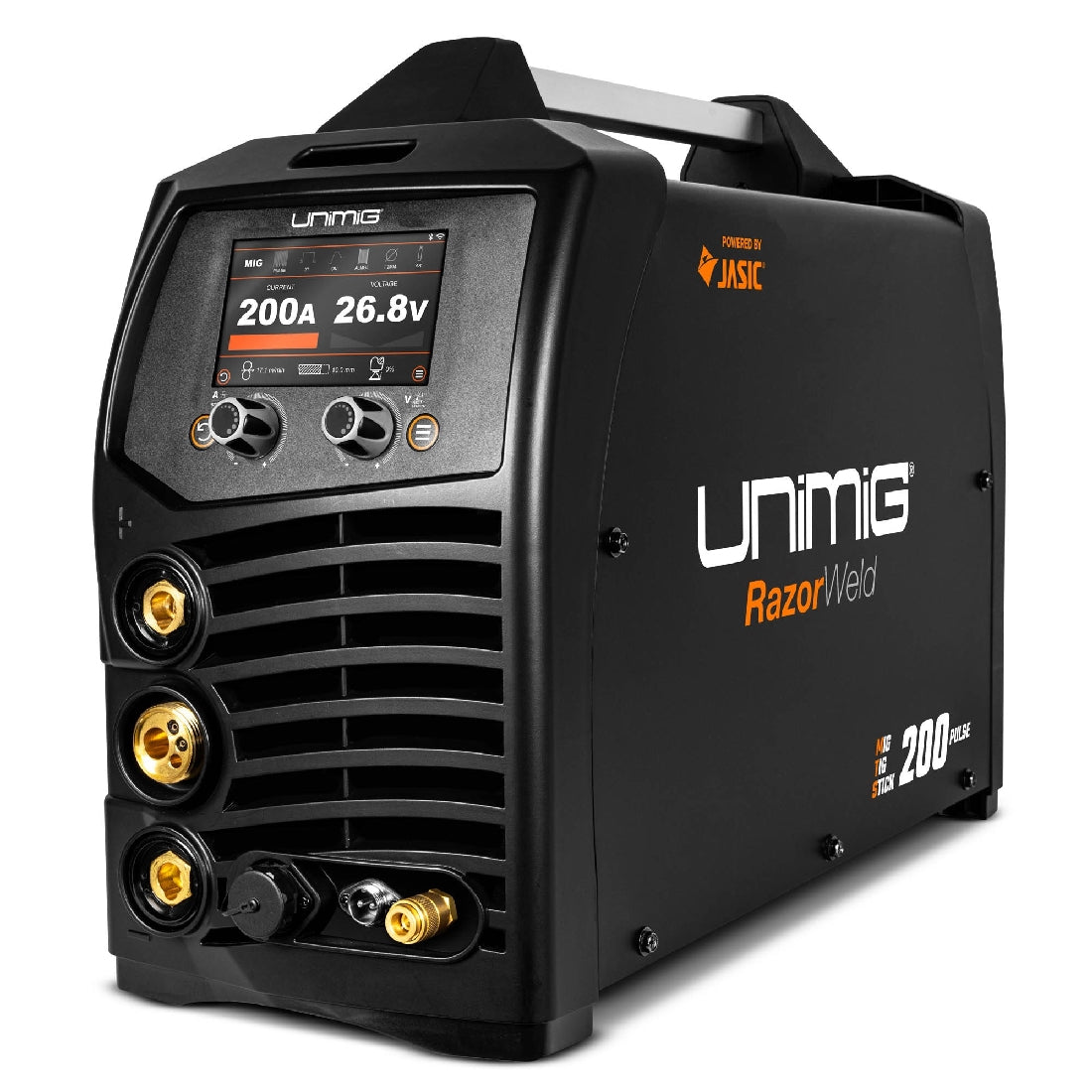

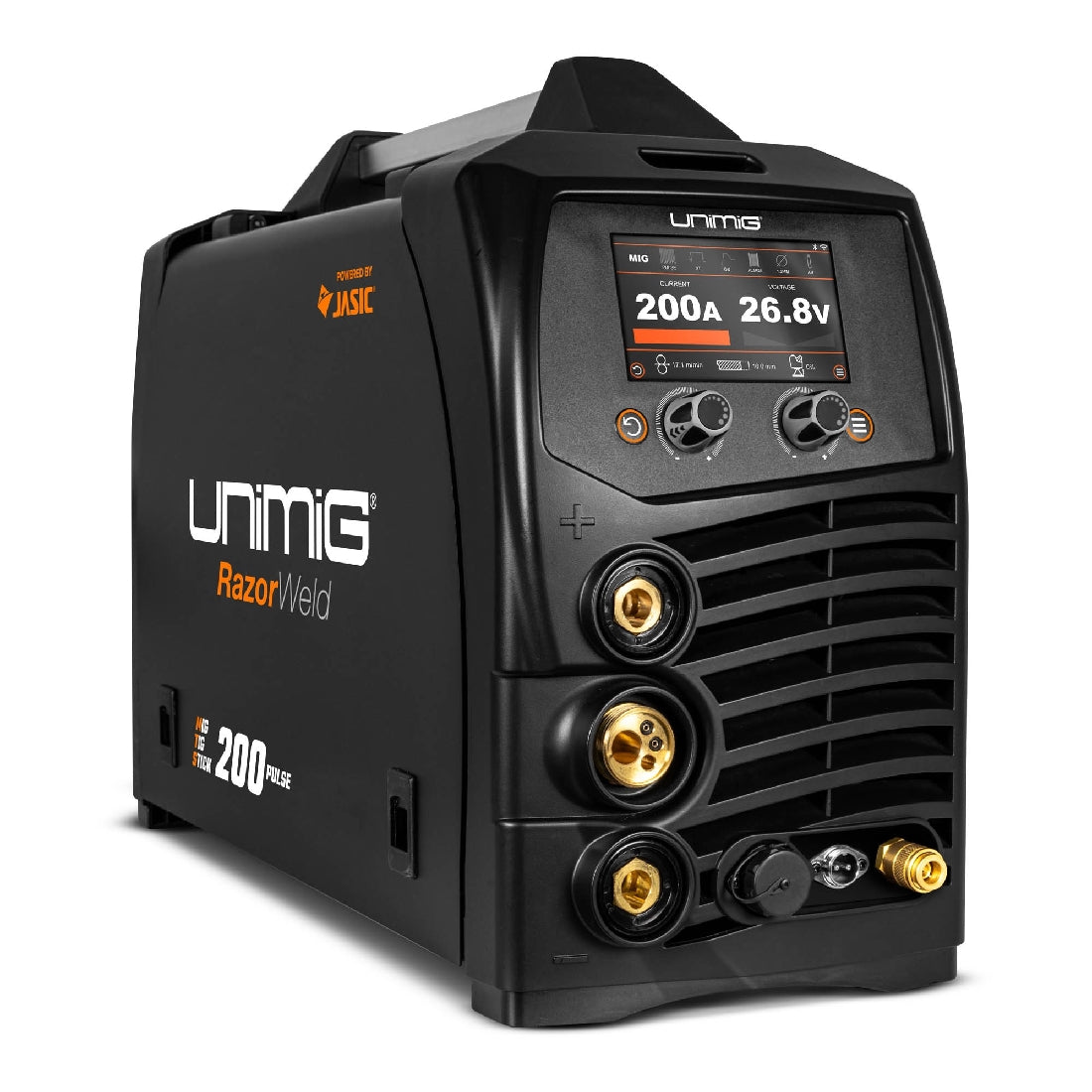

The all-new RAZOR 200 PULSE has arrived. As our latest innovation in pulse MIG, this machine comes filled with revolutionary technology across the board. Whether it’s MIG, pulse MIG, double pulse MIG, High Frequency TIG, pulse TIG or STICK – you name it, the RAZOR 200 PULSE can handle it. Get everything pulse MIG has to offer on a 15 amp plug.

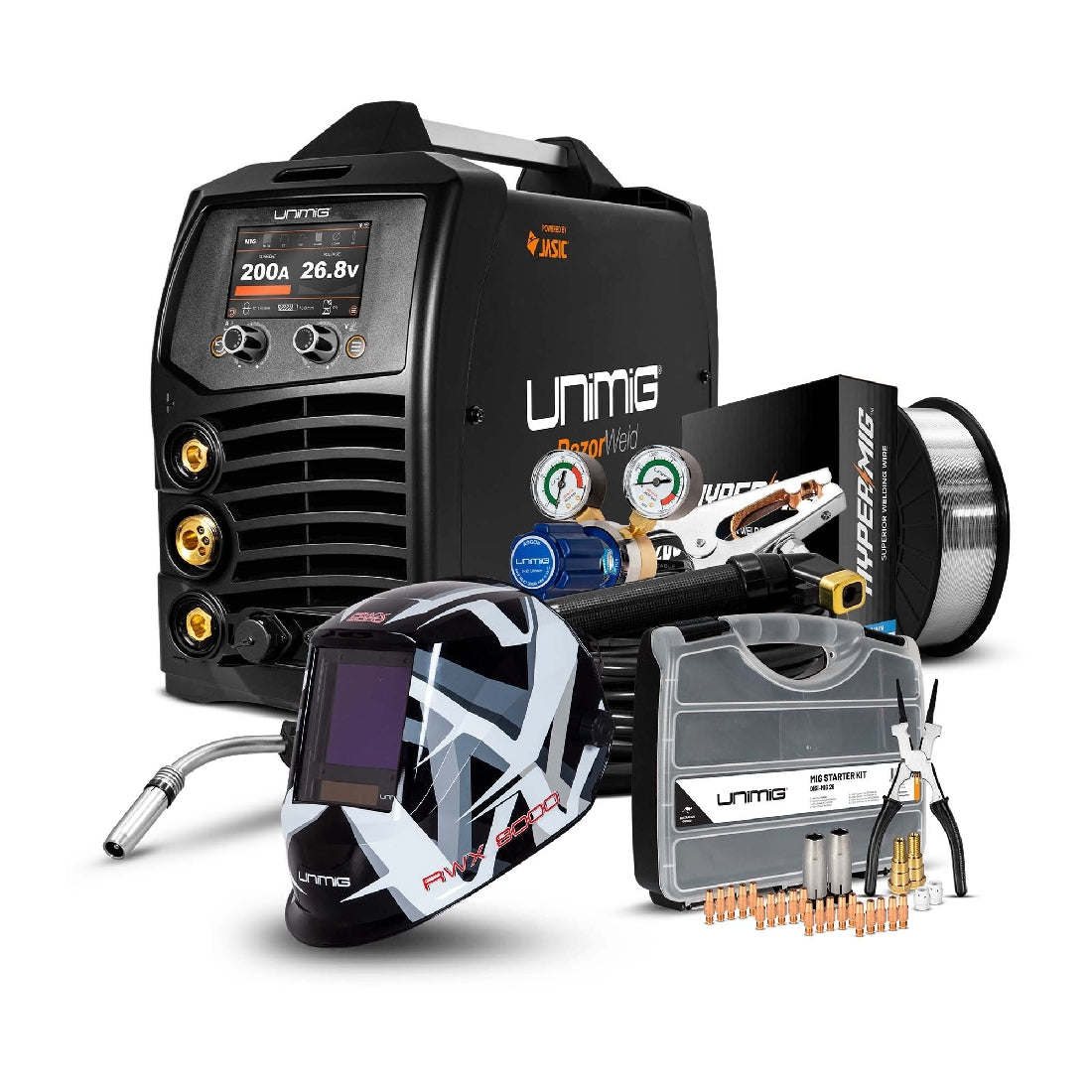

BUNDLE CONTENTS
- RAZOR 200 PULSE MIG/TIG/STICK Welder (U11003K)
- RWX8000 Welding Helmet (UMCWH)
PK11069
SINGLE & DOUBLE PULSE MIG
REDUCES THE HEAT AND MINIMISES SPATTER, WITHOUT COMPROMISING PENETRATION.
100+ SYNERGIC PROGRAMS
JUST SELECT YOUR METAL, WIRE SIZE, AND GAS, AND YOU’RE GOOD TO GO.
5” LCD TOUCH SCREEN
THE LARGE TOUCH SCREEN DISPLAY IS CLEAR, WITH AN EASY TO NAVIGATE INTERFACE.
DIGITAL MIG TORCH
ADJUST YOUR AMPS, CURRENT AND VOLTAGE RIGHT ON THE MIG TORCH ITSELF.
Single & Double Pulse MIG
Pulse welding reduces the heat and minimises spatter, without compromising penetration, so its perfect for thin and soft materials like aluminium.
A single pulse weld alternates between a peak current and a background current. Double pulse welding works the same way, but with a second background current to add even more control over the arc.
- Reduced heat input, so you can weld thinner than standard MIG, perfect for aluminium
- Weld faster than a TIG weld, but with the same aesthetic appearance of TIG
- Spatter free welding, cutting your clean-up time to nothing
- Great penetration even with lower heat
5” LCD Touch Screen Display
Choosing your weld parameters or changing your settings mid weld has never been easier. The large touch screen display is clear, with an easy to navigate interface. You won’t even need a manual to work it out.
Over 100+ Synergic Programs
With over 100 preset synergic programs, setting up for a weld has never been faster. Just select your metal, wire size, and gas, and you’re good to go.
Hot Start and Crater Fill
Hot Start gives you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and makes welding on thicker materials and aluminium easier.
Crater Fill ramps your welding current and voltage down at the end of a weld, so you can fill in the end of a weld at a lower power, eliminating craters and pinholes.
Crater Fill and Hot Start functions mean your welds start strong and end just as strong.
4 Geared Wire Drive
With four geared wire drive rollers, you will get a more consistent and smoother wire feeding experience.
The internal housing also features storage space for additional rollers, so they’re always in reach. It also comes with an internal spool light, for max visibility in any lighting.
High Frequency DC TIG
You can maintain complete control over your TIG welds with the RAZOR 200 PULSE. The high frequency DC TIG welding mode comes with a full set of adjustable parameters, like pre- and post-flow, up and down slopes, as well as all things pulse. Everything you need, right at your fingertips.
STICK (MMA)
You’ll be able to STICK weld anything, including cellulosic electrodes, plus with the addition of Anti Stick, you’ll never struggle to strike an arc again.
The Arc Force function helps to keep the arc stabilised throughout the weld, so it won’t cut out, and stops the electrode from sticking.
Power Limit works to keep the amperage constant throughout the weld by preventing the voltage from exceeding the set value.
GLICK Heat Control
When using the GLICK function, set a base current, which you can switch to at any time during a weld by pressing the trigger button. GLICK is great for manual heat input control as you go.
Job Memory (100 Jobs)
Save your favourite weld settings with the jobs function.
Digital Control Torch
Adjust your amps, current and voltage right on the MIG torch itself. Plus, if you plug in a TIG torch, pressing the trigger will automatically switch you to the TIG screen and vice versa.
2T / 4T / SPOT
Choose between two-touch, four-touch and spot modes to maximise operator comfort on every weld.
Adjustable Arc Length
Increase or decrease your arc length while in the synergic and pulse MIG modes to suit your weld style.
Inductance Control
Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.
Generator Compatible
Going off the grid? The RAZOR 200 PULSE can be connected to a generator, we recommend one with an 11kVA rating.
Product No: PK11069
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase
SUPPLY PLUG
15 AMP
Ieff (A)
14.9
RATED OUTPUT
40A/16V-200A/24V
NO LOAD VOLTAGE (V)
77
PROTECTION CLASS
IP23S
INSULATION CLASS
H
MINIMUM GENERATOR (kVA)
11.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years)
3
MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE
40-200A
MIG DUTY CYCLE @ 40°C
15% @ 200A, 60% @ 101A, 100% @ 78A
MIG WIRE SIZE RANGE
0.6-1.2mm
MIG WIRE SPOOL SIZE
100mm / 200mm
MIG WELDING THICKNESS RANGE
1-10mm
DRIVE ROLLER SIZE
30/22
TIG SPECIFICATIONS
TIG FUNCTION TYPE
High-Frequency
TIG WELDING CURRENT RANGE
5-200A
TIG DUTY CYCLE @ 40°C
20% @ 200A, 60% @ 116A, 100% @ 90A
TIG WELDING THICKNESS RANGE
1-8mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20-180A
STICK DUTY CYCLE @ 40°C
15% @ 180A, 60% @ 91A, 100% @ 70A
STICK ELECTRODE RANGE
2.5-4.0mm
STICK WELDING THICKNESS RANGE
2-12mm
ARC FORCE
0-100%
SIZE & WEIGHT
DIMENSIONS (mm)
605x230x400mm
WEIGHT (kg)
17kg
MACHINE FEATURES
WIRE DRIVE
4 Geared
VRD
Yes
BURNBACK ADJUSTMENT
Yes
WIRE INCH
Yes
INDUCTANCE CONTROL
Yes
THERMAL OVERLOAD PROTECTION
Yes
