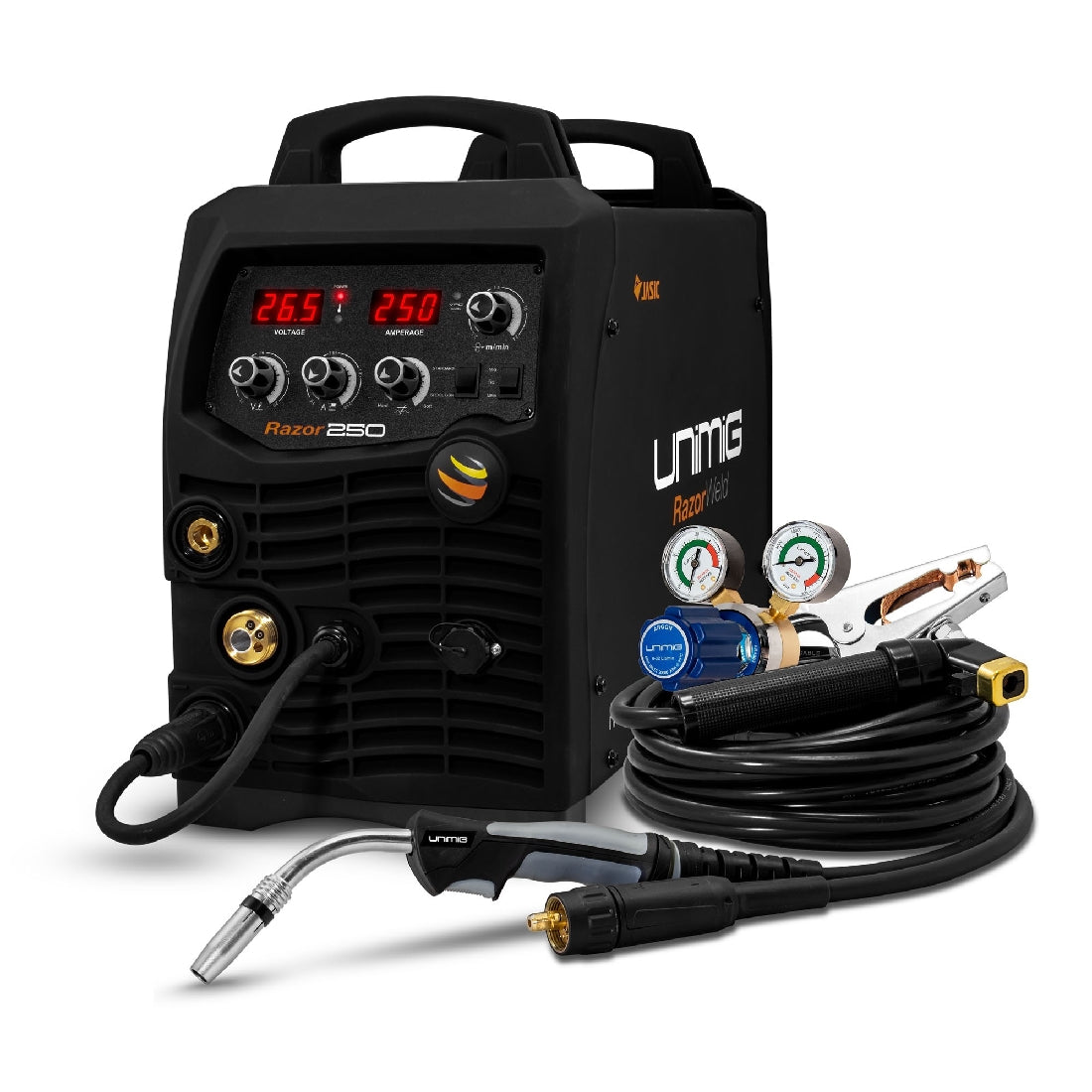

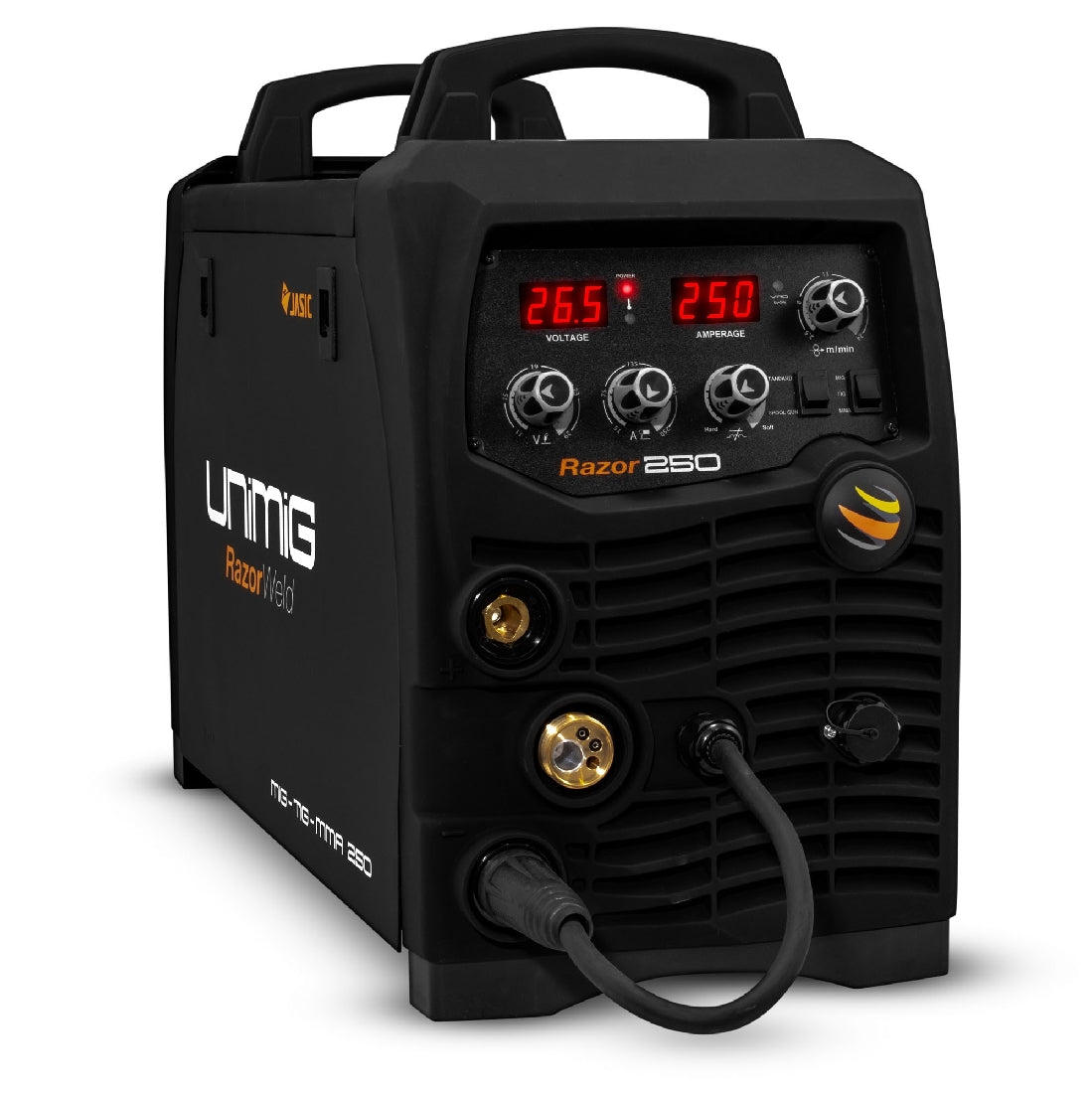

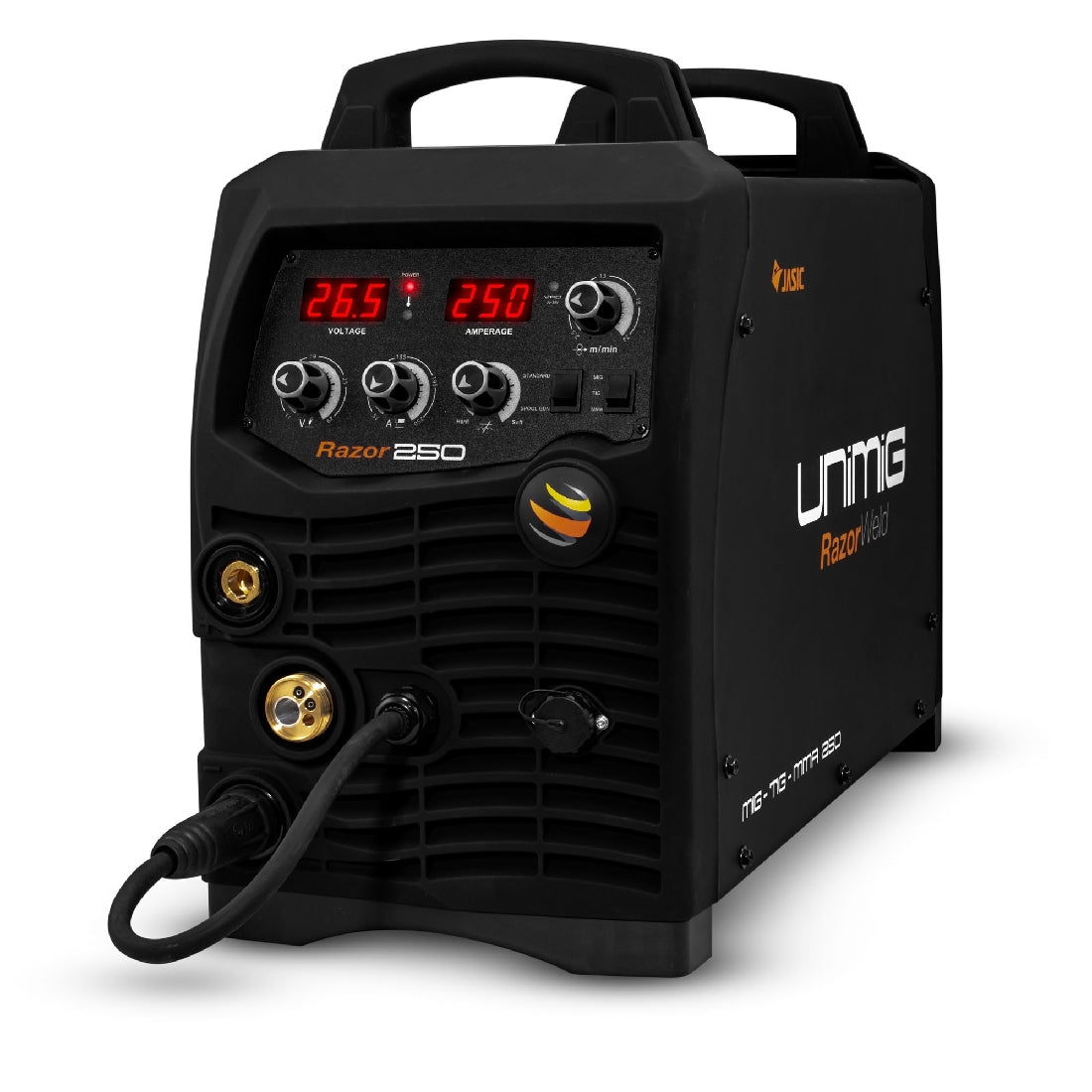

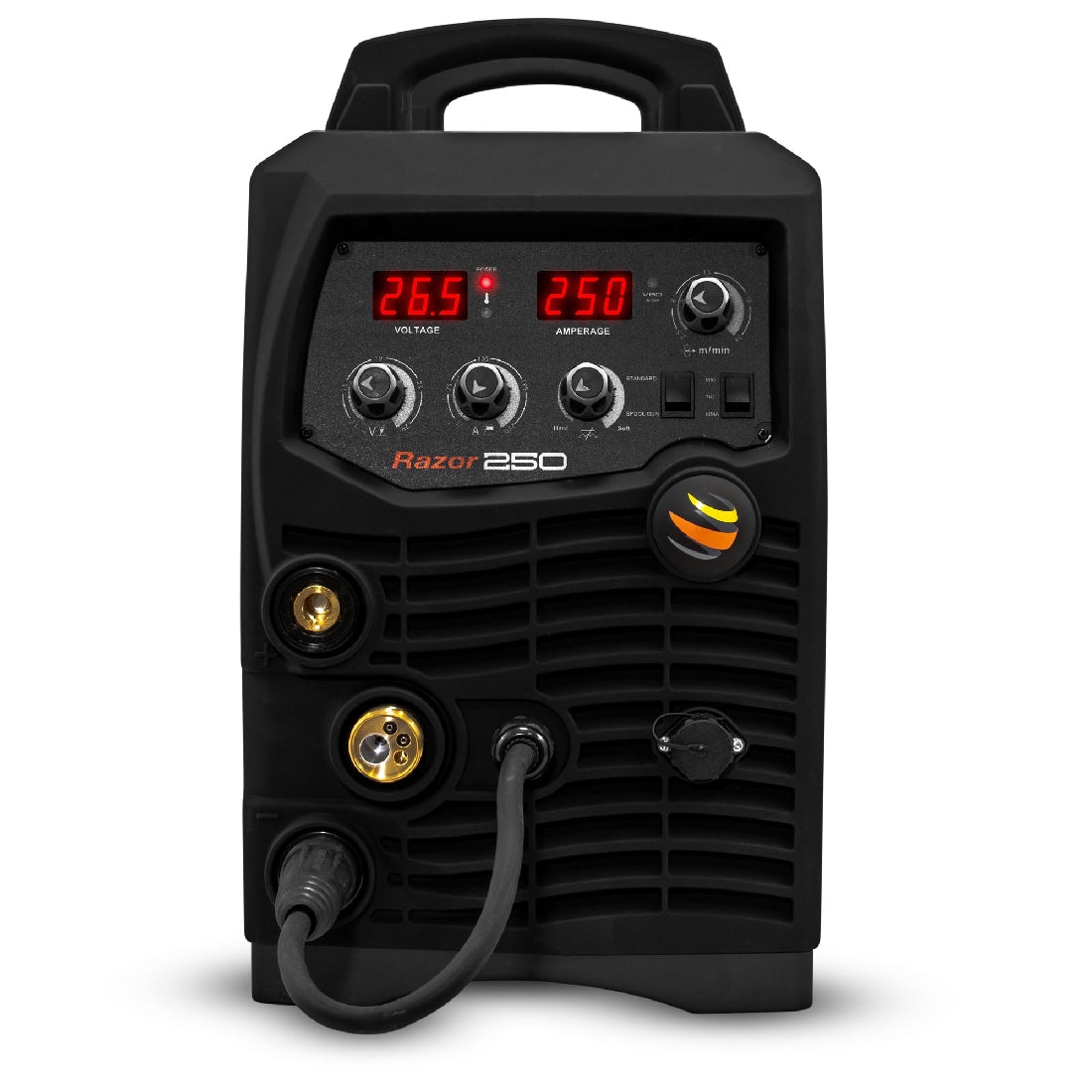

Unimig Razor Mig 250 Portable

Unimig Razor Mig 250 Portable

$1,945.00 AUD
$1,945.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Looking for portability and performance? The RAZOR™ 250 is the perfect match for welders needing powerful performance both in the workshop and on their worksite. With a spool gun connection – and a geared wire drive – the RAZOR™ 250 is a must-have for the serious welder.


KUMJRRW250MIG





SINGLE PHASE

240V POWER

SPOOL GUN READY

FOR SOFTER WIRES, SUCH AS ALUMINIUM.

LARGE WIRE SPOOL CAPACITY

FITS 200MM & 300MM WIRE SPOOLS.

GEARED WIRE DRIVE

FOR SMOOTHER WIRE FEEDING.

MULTI PROCESS WELDING



This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.



GEARED WIRE DRIVE



This machine features a geared roller drive unit, providing consistent and smooth wire feed. This also assists with using longer MIG Torches.



SPOOL GUN READY



This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.



Product No: KUMJRRW250MIG

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

11.0

Ieff (A)

28.0

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

54

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.72

MINIMUM GENERATOR (kVA)

13.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

30% @ 250A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-12mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-250A

TIG DUTY CYCLE @ 40°C

30% @ 250A

TIG WELDING THICKNESS RANGE

1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-250A

STICK DUTY CYCLE @ 40°C

30% @ 250A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

585x280x440mm

WEIGHT (kg)

30kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
