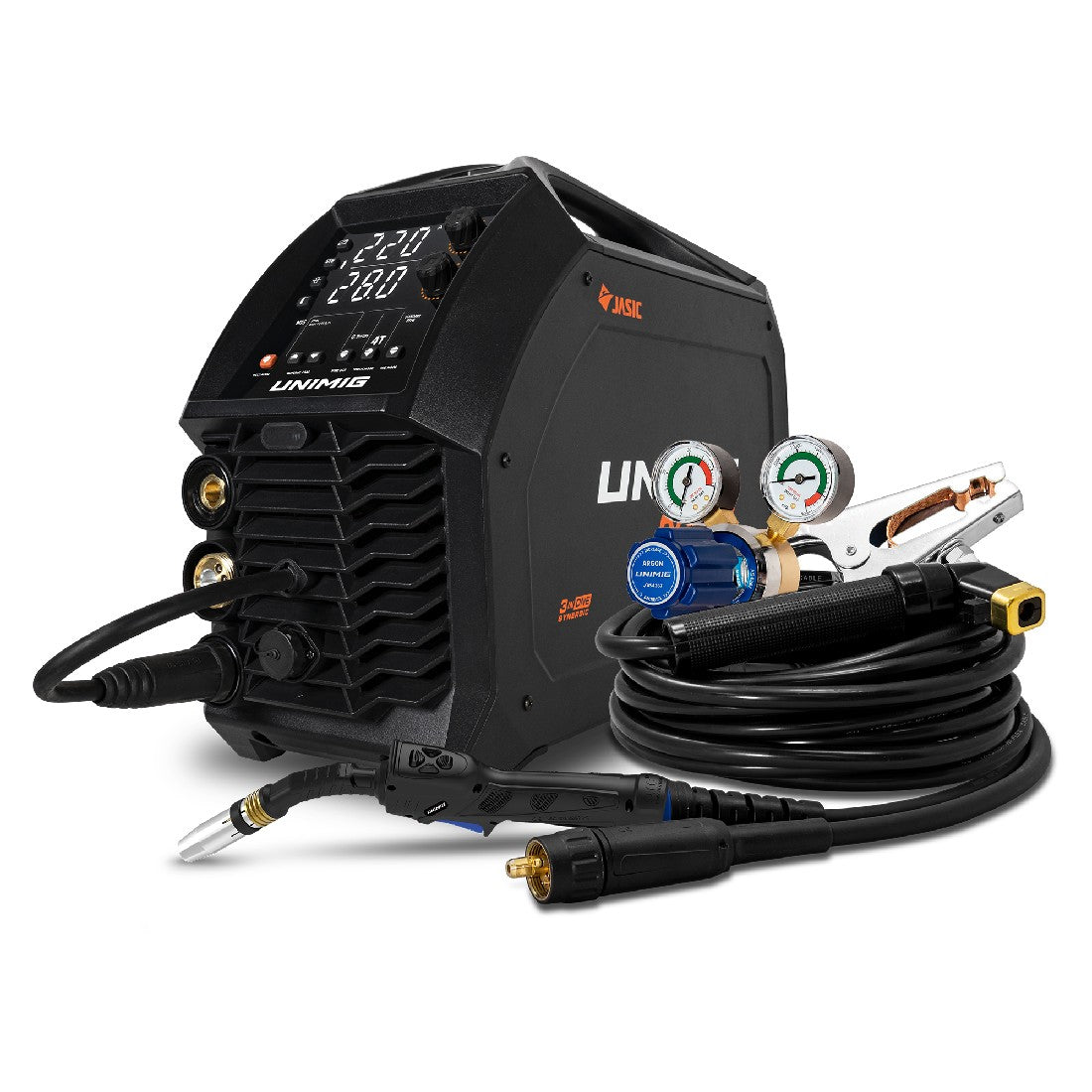

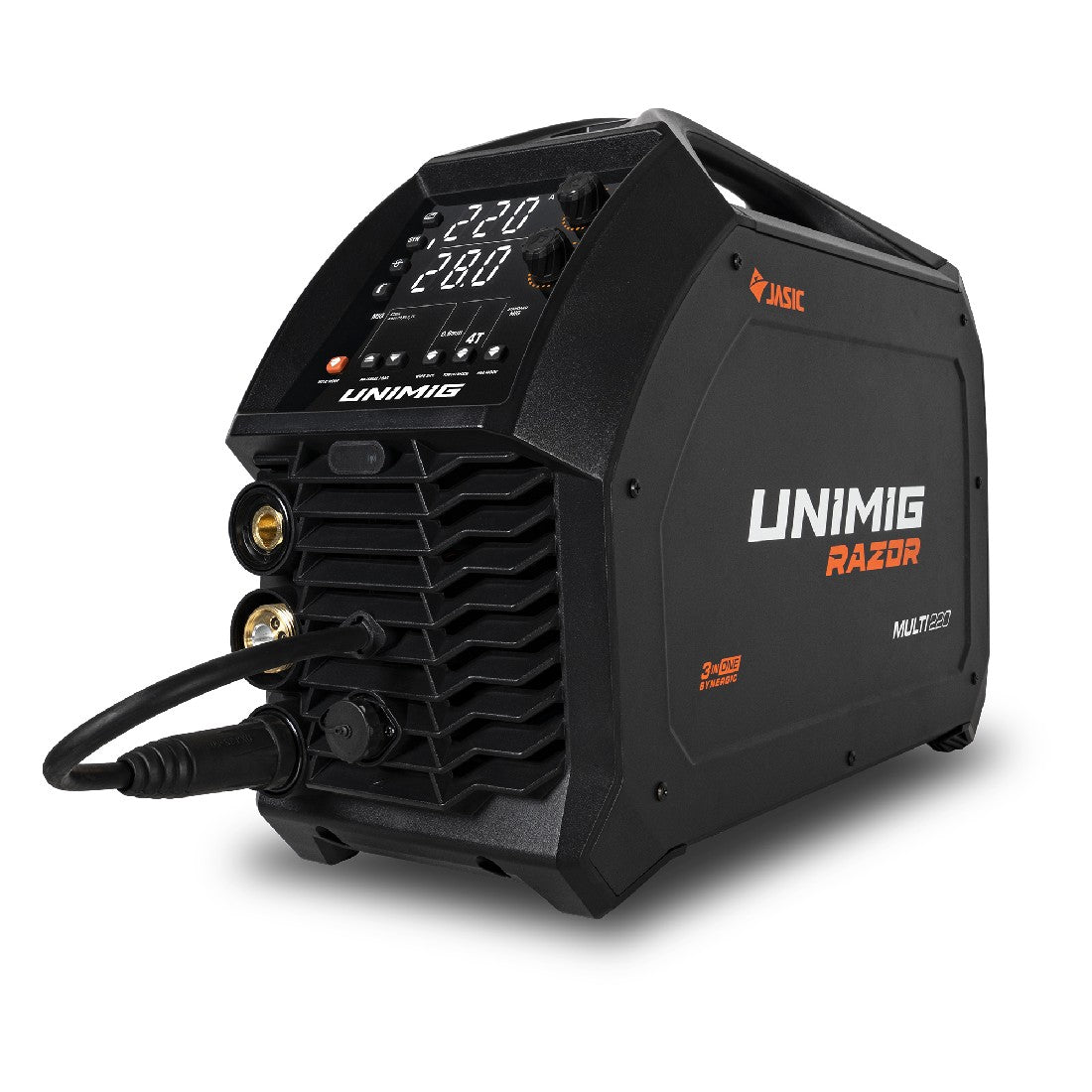

Razor Multi 220 Welder - New Generation

Razor Multi 220 Welder - New Generation

$1,665.00 AUD
$1,665.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

A professional machine in a portable case with all the power, the RAZOR MULTI 220 is perfect for the worksite or the workshop.

  • Quick and easy setup with synergic MIG programs
  • 3-in-1 multi-process machine so you can MIG, TIG & STICK
  • Geared wire drive system for smooth wire feeding
  • A huge 5-year warranty
U11008K

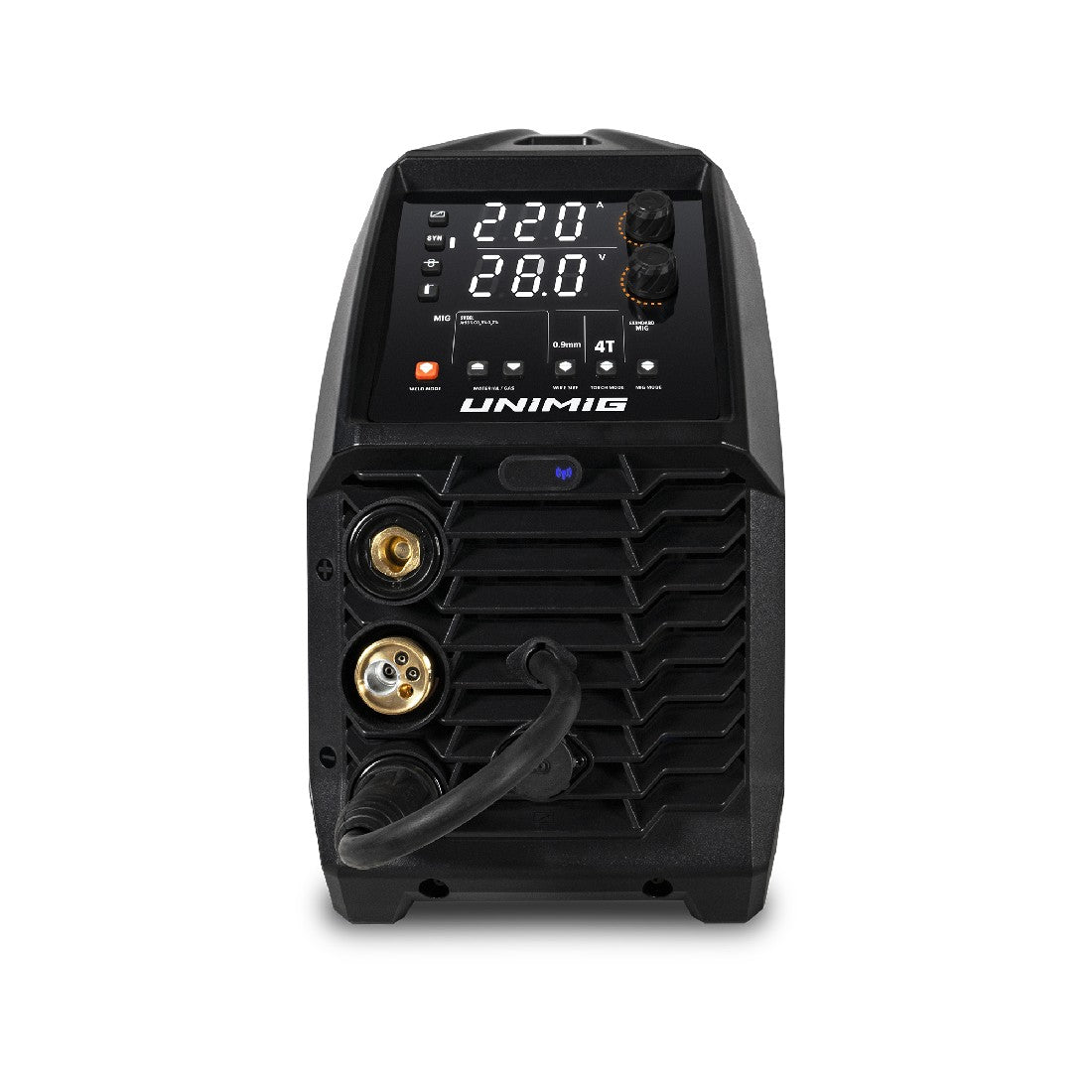

HD Backlit Interface



This next generation interface panel is bright and easy to read in any environment.



Synergic MIG Control



Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.



Multi-Process Welding



Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and STICK welding all in one unit, you can save valuable time and effort without sacrificing quality.



Digital Control MIG Torch



Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.



Spool Gun Ready



Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.



Gas & Gasless MIG



Capable of running both gas-shielded and gasless MIG wire, you can to tackle a wide variety of welding projects with ease. Whether you’re working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered.



Geared Wire Drive



For a consistent and smooth wire-feeding experience. The geared wire drive unit gives more power pushing to the wire, improving the wire feeding, especially in longer torches.



Trigger Controlled DC Lift Arc TIG



The Trigger Controlled DC Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.



Advance MMA Features



This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.



Smart Fan



Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.



RAZOR MULTI 220 Feature Video



Check out all of the features on the RAZOR MULTI 220.



Product No: U11008K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

Ieff (A)

14.7

RATED OUTPUT

30A/15.5V - 220A/25V

NO LOAD VOLTAGE (V)

60

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

12.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze"

WARRANTY (Years)

5

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-220A

MIG DUTY CYCLE @ 40°C

15% @ 220A / 60% @ 110A / 100% @ 85A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

Trigger Controlled DC Lift Arc

TIG WELDING CURRENT RANGE

5-220A

TIG DUTY CYCLE @ 40°C

15% @ 220A / 60% @ 110A / 100% @ 85A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-180A

STICK DUTY CYCLE @ 40°C

15% @ 180A / 60% @ 90A / 100% @ 70A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

560×220×400

WEIGHT (kg)

15.1

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

YES

SPOOL GUN CONNECTION

YES

FOOT CONTROL CONNECTION

YES

BURNBACK ADJUSTMENT

YES

WIRE INCH

YES

INDUCTANCE CONTROL

YES

THERMAL OVERLOAD PROTECTION

YES
