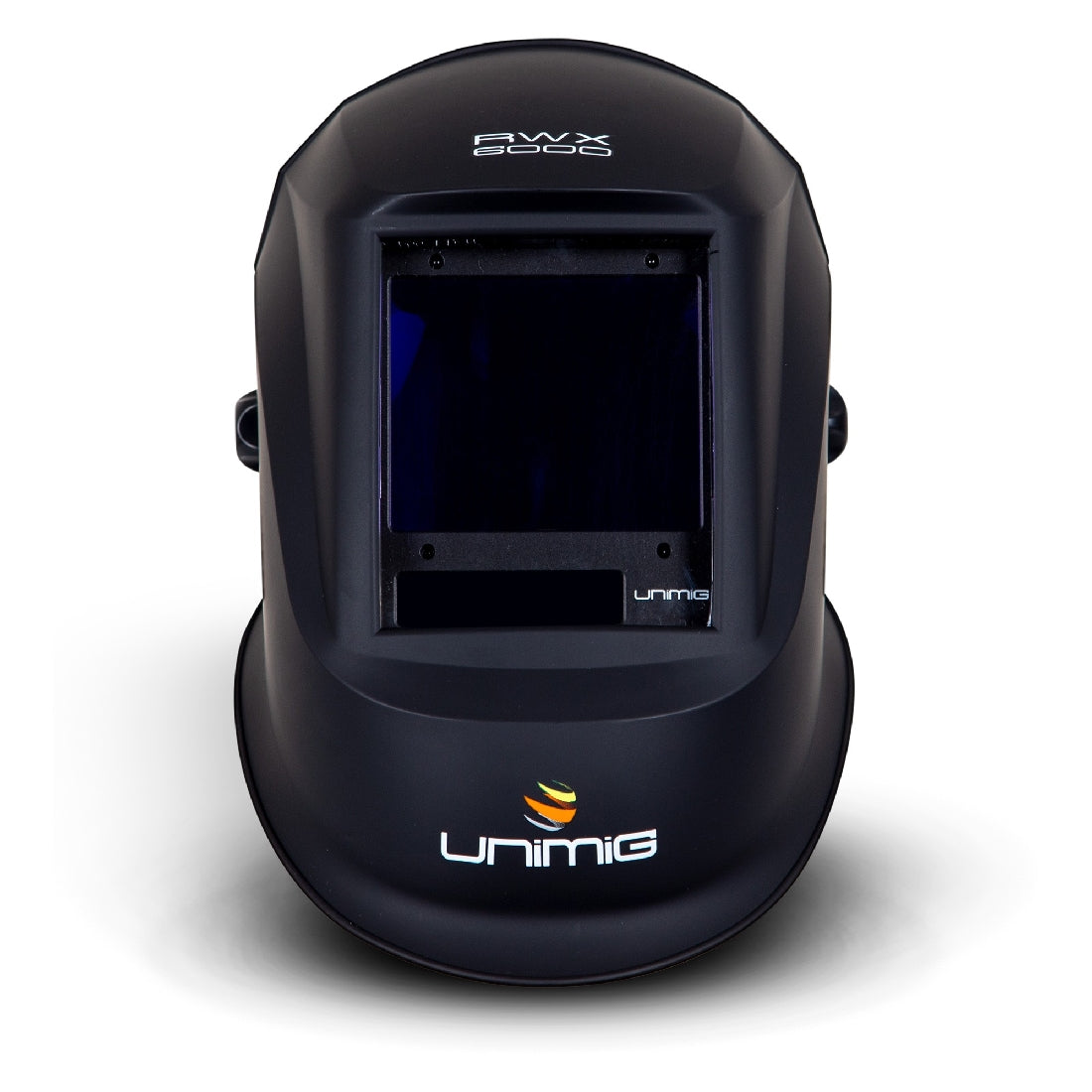

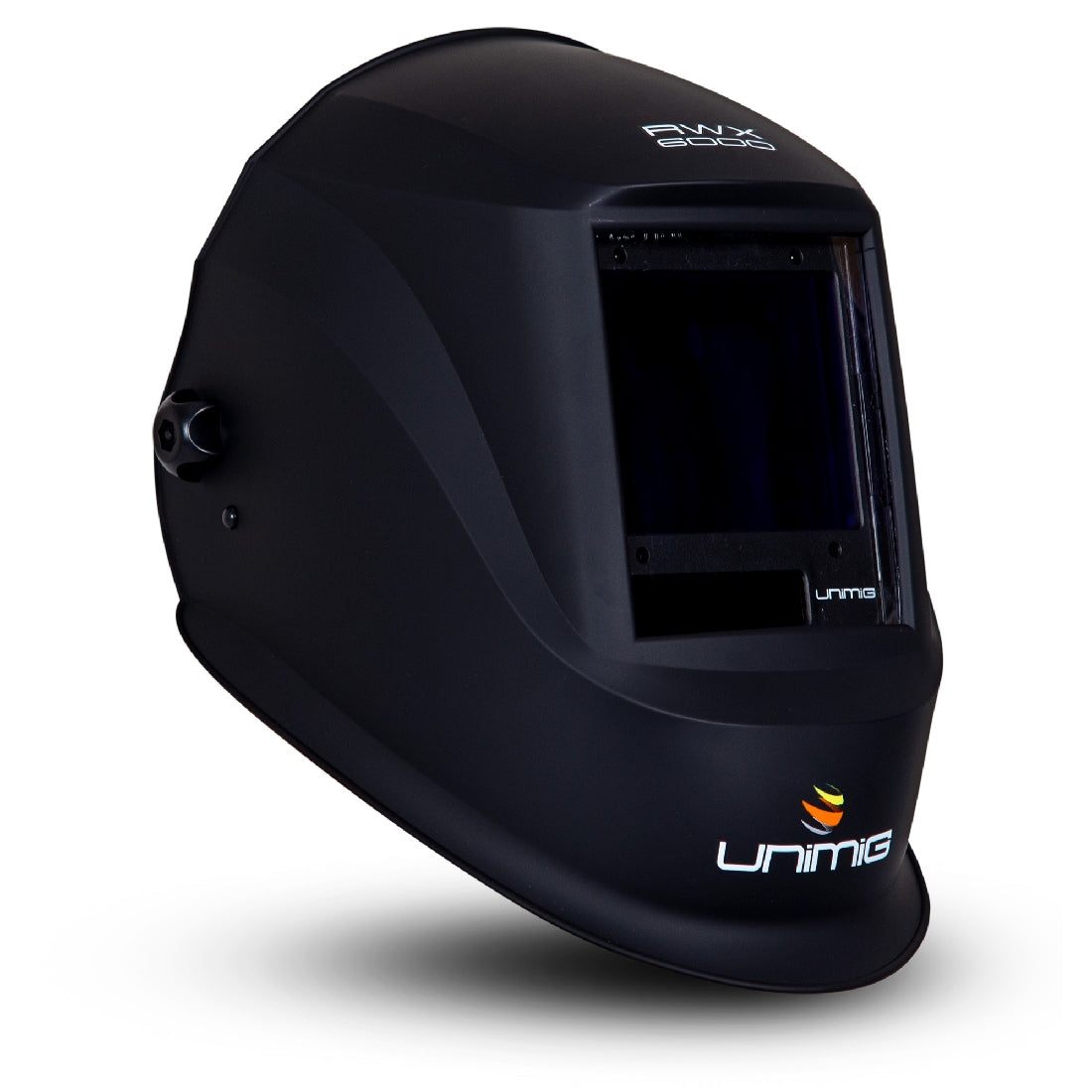

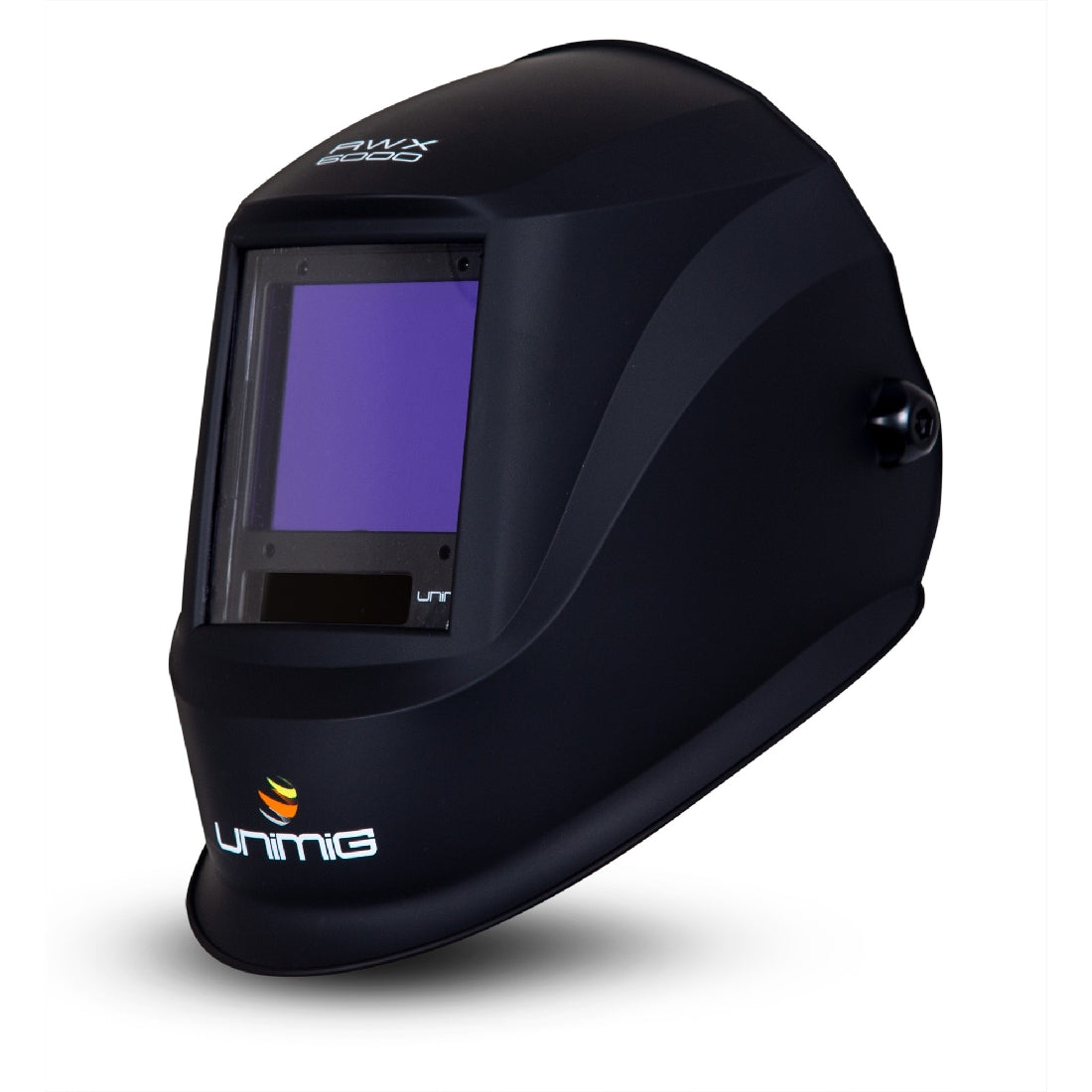

Unimig Rwx6000 Black Welding Helmet

The RWX6000™ Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. This helmet features a 1/1/1/1 classification, the highest possible classification for optical clarity. Fitted with 4 arc sensors, the RWX6000™ Welding Helmet features 5-13 Shade control as well as GRIND mode for use when grinding. It is suitable for MIG, TIG (Minimum 3A) and STICK welding, as well as plasma cutting.

A 100x83mm view allows for a large view of the work area, while a replaceable backup battery improves the performance of the auto-darkening filter. Also included is the ability to save up to 3 memory profiles.

The RWX6000™ Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.

UMRWXWH



100x83.4mm

VIEW SIZE.

5-13

SHADE CONTROL.

4 Arc Sensors

CONSTANTLY MONITOR THE ARC.

GRIND MODE

FOR USE WHEN GRINDING.

ELITEVISION™ Lens Technology



ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.



1/1/1/1 CLASSIFICATION



Welding helmet lenses are graded on a rating system from 1 to 3 across four categories, with 1 being the highest and 3 being the lowest. This helmet features the maximum 1/1/1/1 classification for optical quality, diffusion of light, light consistency and angle dependence.



MEMORY STATES



The three most frequently used settings can be stored and reactivated easily by using the three memory buttons on the Auto-Darkening Filter (ADF).



• SPECIFICATIONS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: UMRWXWH

HELMET SPECIFICATIONS

FILTER DIMENSIONS

114x133x9.5mm

VIEW SIZE

100x83.4mm

ARC SENSORS

4

CLASSIFICATION

1/1/1/1

LIGHT STATE

4

DARK STATE

5-9 / 9-13

UV/IR PROTECTION

DIN15

TIME FROM LIGHT TO DARK

0.08ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (1-5 for low-high)

POWER SUPPLY

Solar Cells & CR2450 Replaceable Battery

WARRANTY

2 Years

OPERATING TEMPERATURE

-10˚C to 65˚C

STORAGE TEMPERATURE

-20˚C to 85˚C

SHADE CONTROL

Yes

GRIND MODE

Yes

STANDARDS

CE EN379, ANSI Z87.1, CSA Z94.3,

REPLACABLE PARTS

OUTER LENS

PUMRBOP

INNER LENS

PUMRWXIP

HARNESS

UMRWXHR

SWEAT BAND

UMSB

FILTER

XA-5122D
