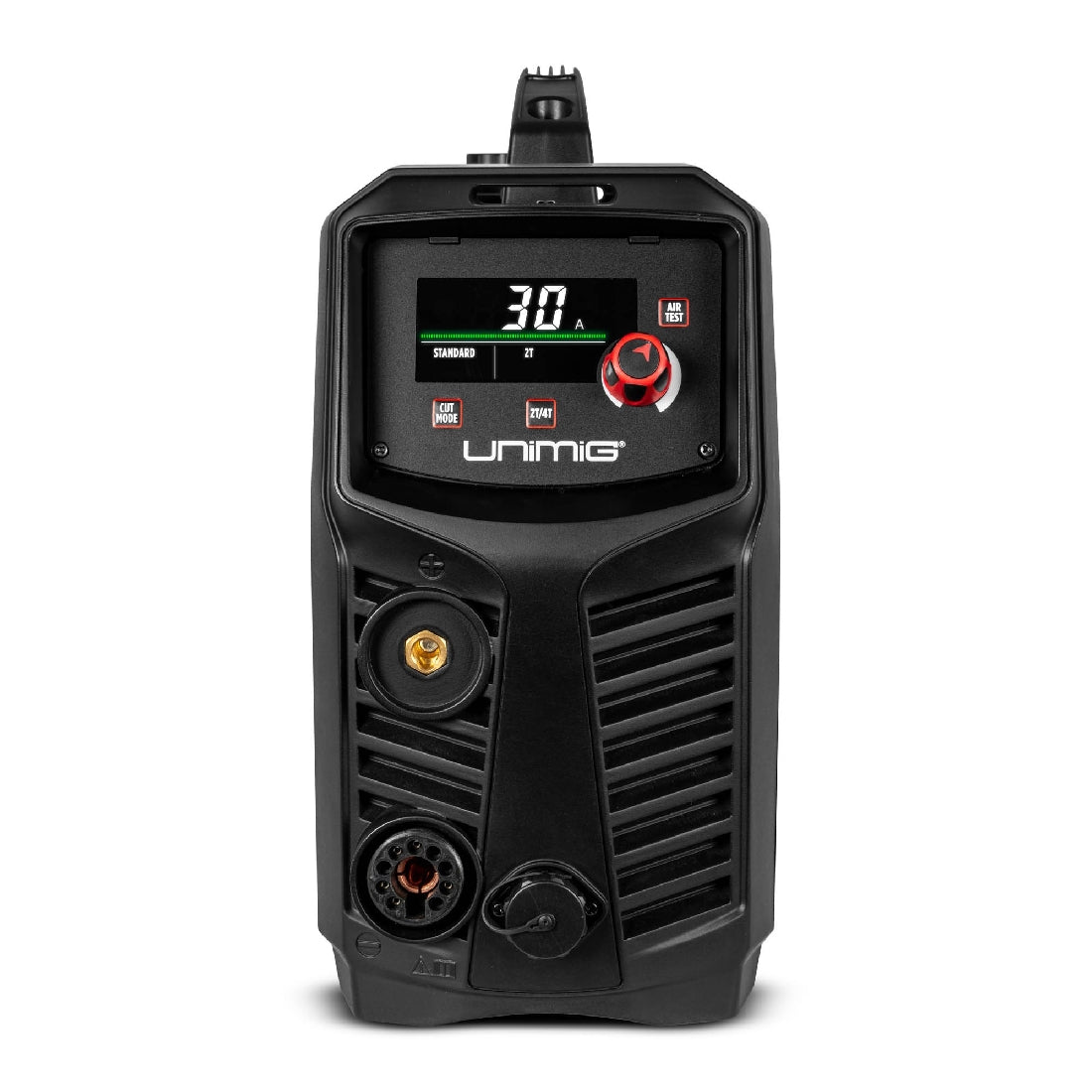

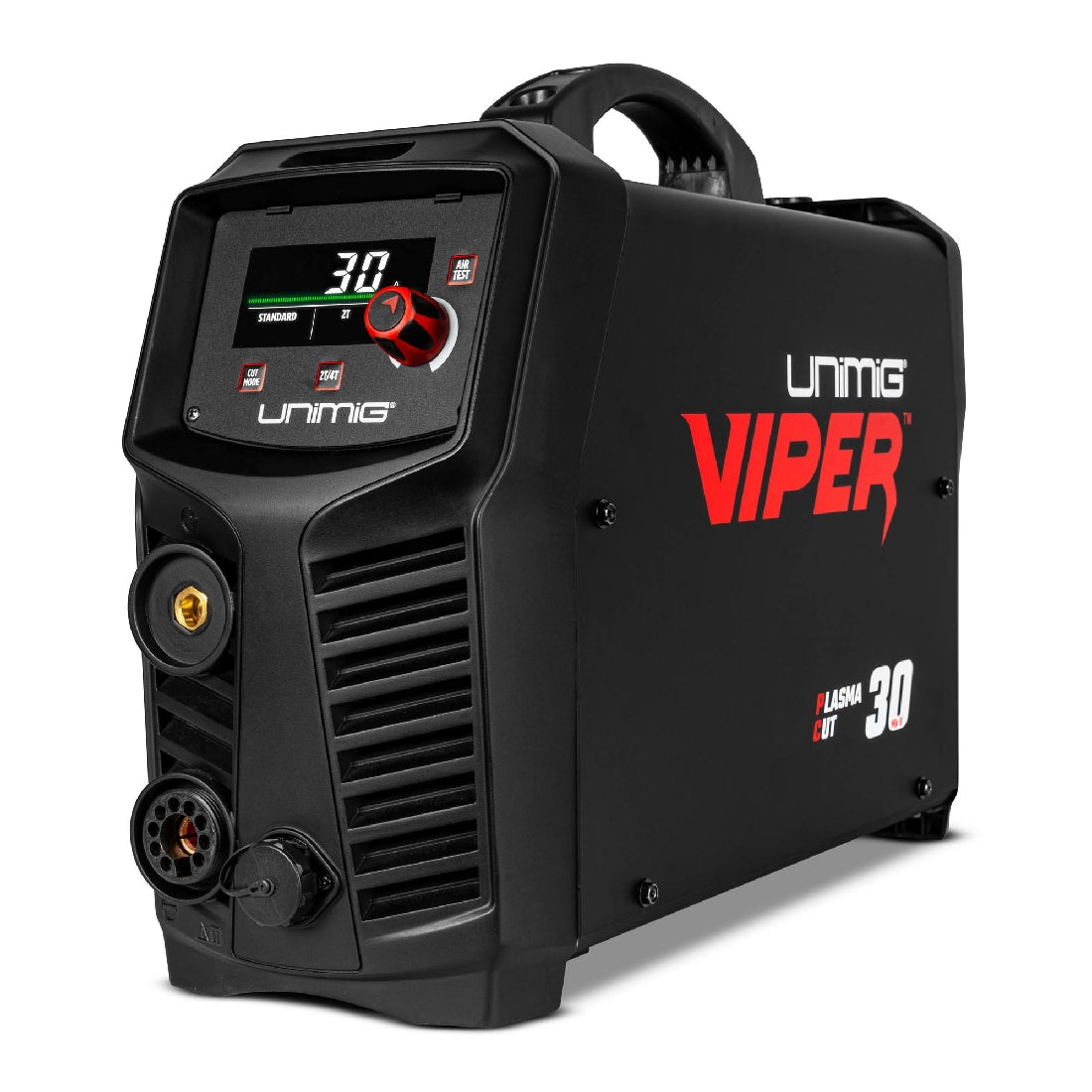

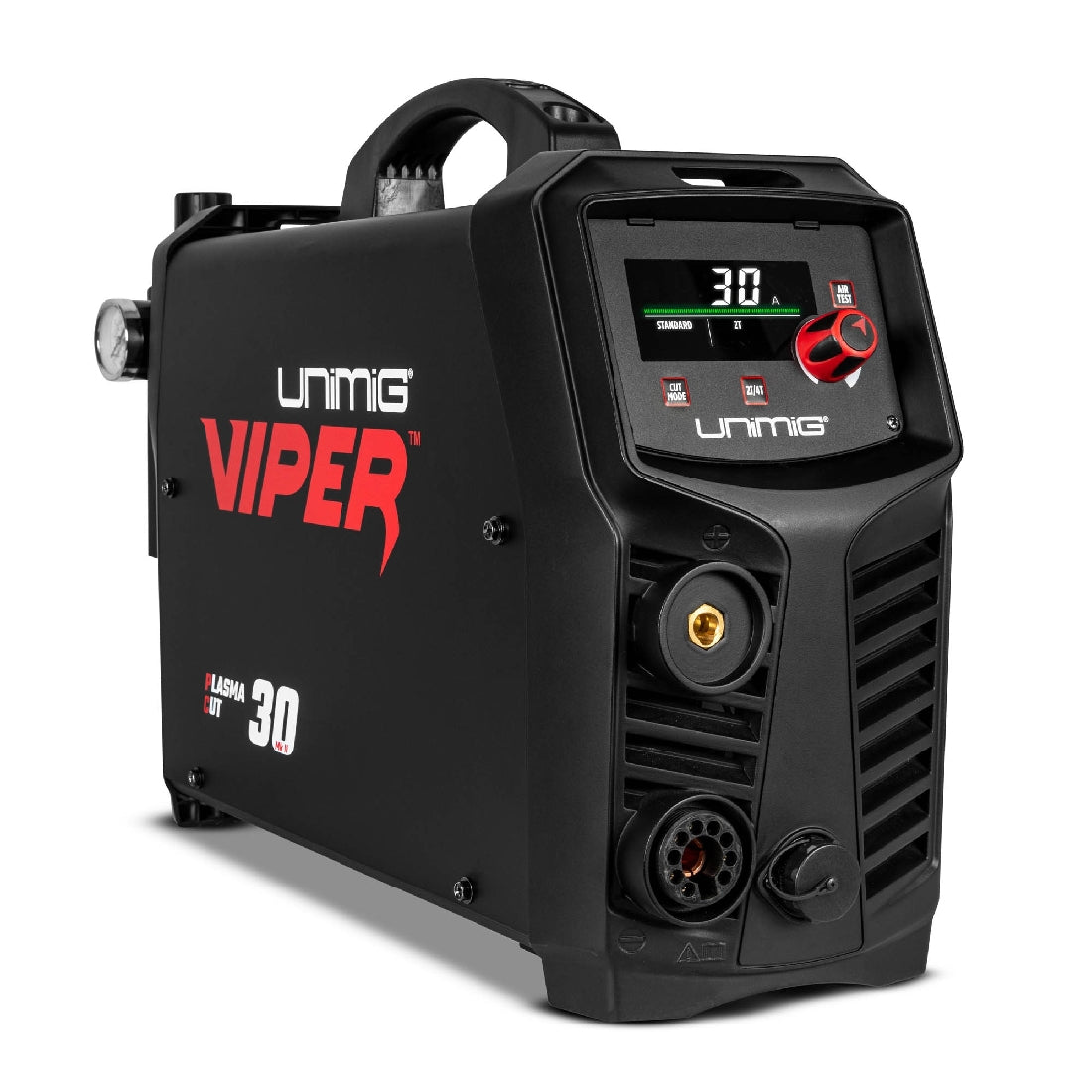

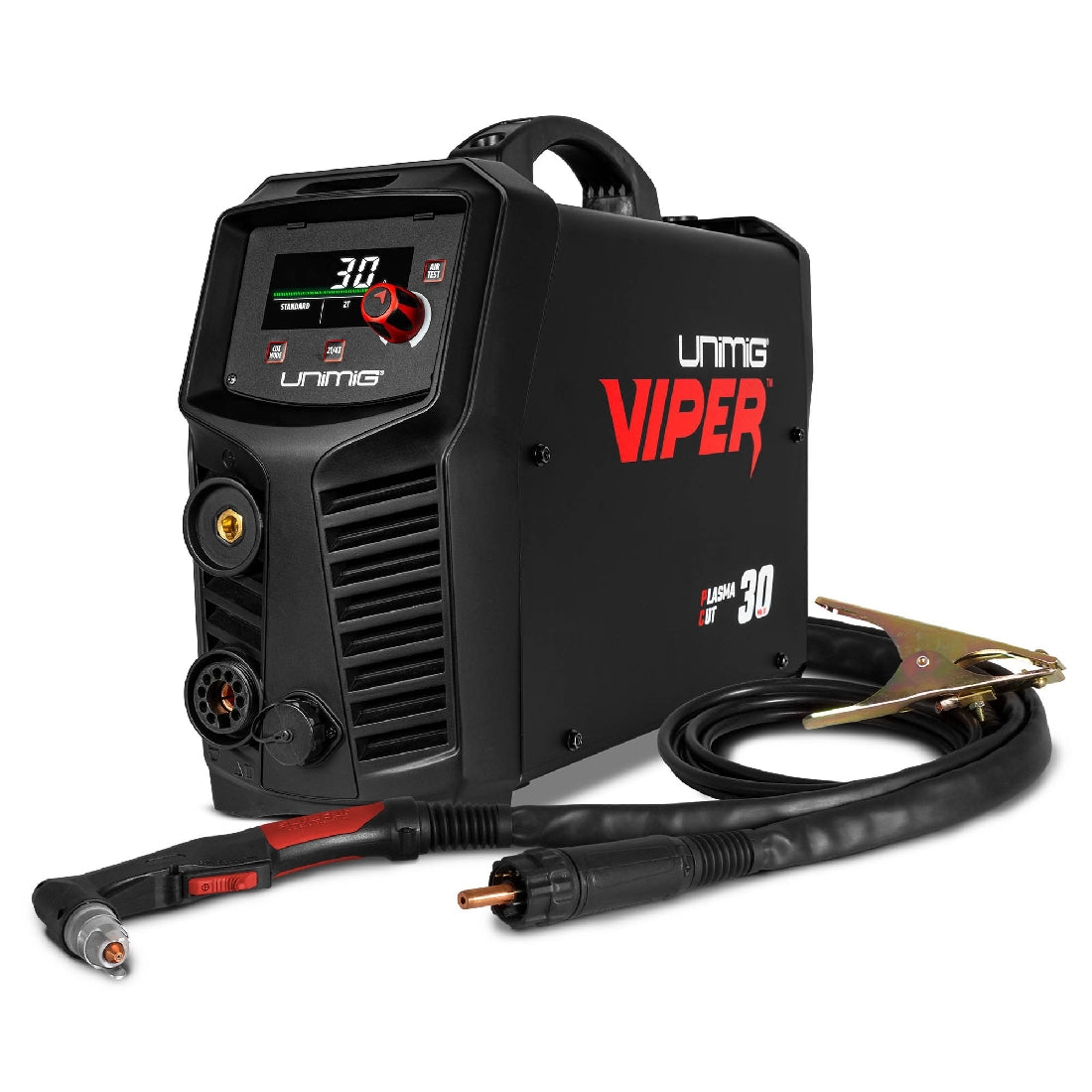

Unimig - Viper Cut 30 Mk Ii Plasma Cutter

Cut anything, anywhere. Whether it’s solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the VIPER CUT 30 Mk II can handle anything you throw at it.

U14005K





10 AMP PLUG

CONNECT TO ANY STANDARD OUTLET.

12mm CLEAN CUT

MILD STEEL.

2T/4T TORCH CONTROLS

MORE COMFORT WHEN CUTTING.

CNC Connection

CONNECT TO A CNC TABLE.

CNC Compatible



The VIPER CUT 30 Mk II comes with a CNC connection, so you can plug in a CNC torch and use it with a CNC table.



MAXIMUM POWER



The VIPER CUT 30 Mk II is one of the most powerful cutters for its size. Running at just 30A, this machine still has the capability to produce a 12mm clean cut and a 14mm severance.



CUT ANYTHING



Get unrivalled performance across every kind of metal. Whether you’re working on solid mild steel or trying out the new perforated cutting mode on materials like mesh and grating, the VIPER CUT 30 Mk II can do it all.



10 AMP PLUG



Take this machine with you wherever you go. With a 10AMP power plug, you can plug and go with any domestic outlet. Its versatility makes it perfect for at-home use and on job sites.



PILOT ARC START



Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.



FEATURE VIDEO



Check out all the features on the VIPER CUT 30 Mk II Plasma Cutter.



• SPECIFICATIONS
• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: U14005K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

7.5

RATED OUTPUT

92V

PROTECTION CLASS

IP21S

INSULATION CLASS

F

MINIMUM GENERATOR (kVA)

8.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

WARRANTY (Years)

2

SIZE & WEIGHT

DIMENSIONS (mm)

534x166x343mm

WEIGHT (kg)

8.5kg

MACHINE FEATURES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-30A

PLASMA CUT DUTY CYCLE @ 40°C

15% @ 30A / 60% @ 23A / 100% @ 20A

MILD STEEL CUT THICKNESS

12mm

MILD STEEL SEVERANCE THICKNESS

14mm

ALUMINIUM CUT THICKNESS

6mm

ALUMINIUM SEVERANCE THICKNESS

8mm

STAINLESS STEEL CUT THICKNESS

6mm

STAINLESS STEEL SEVERANCE THICKNESS

8mm

AIR FLOW DRAW OFF (L/min)

170

AIR FLOW PRESSURE (Bar)

5-6 (70-87 psi)

PLASMA ARC START

Pilot Arc
