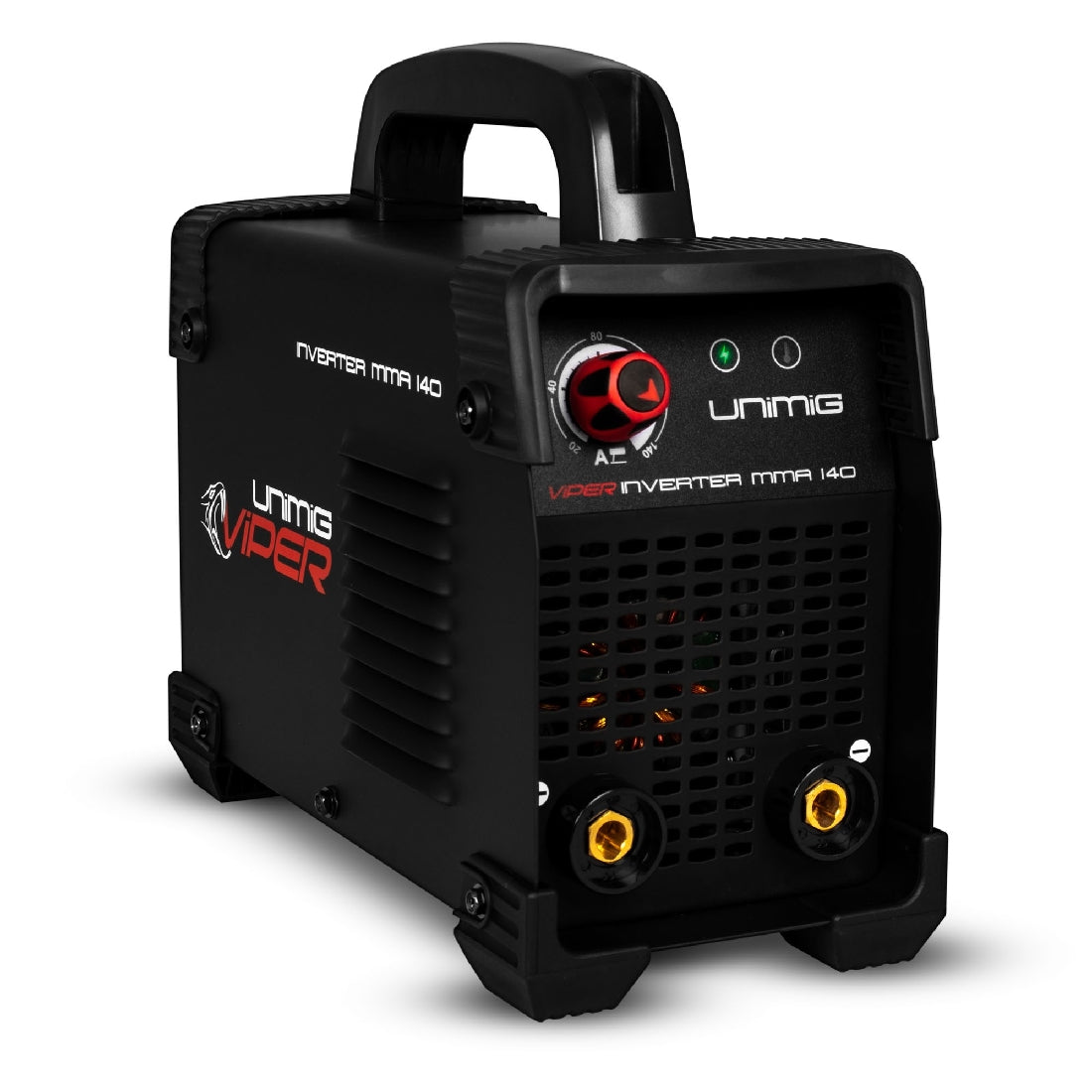

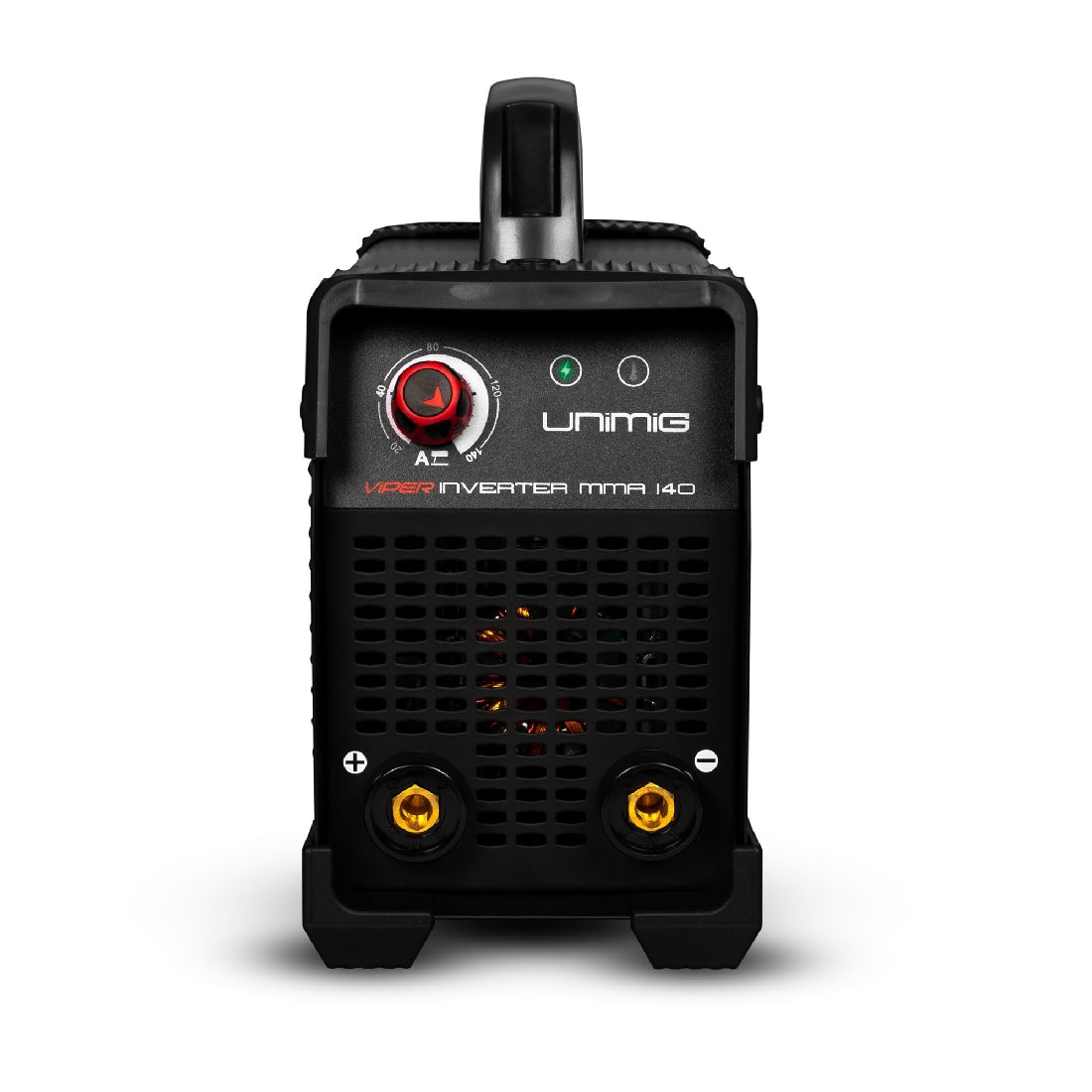

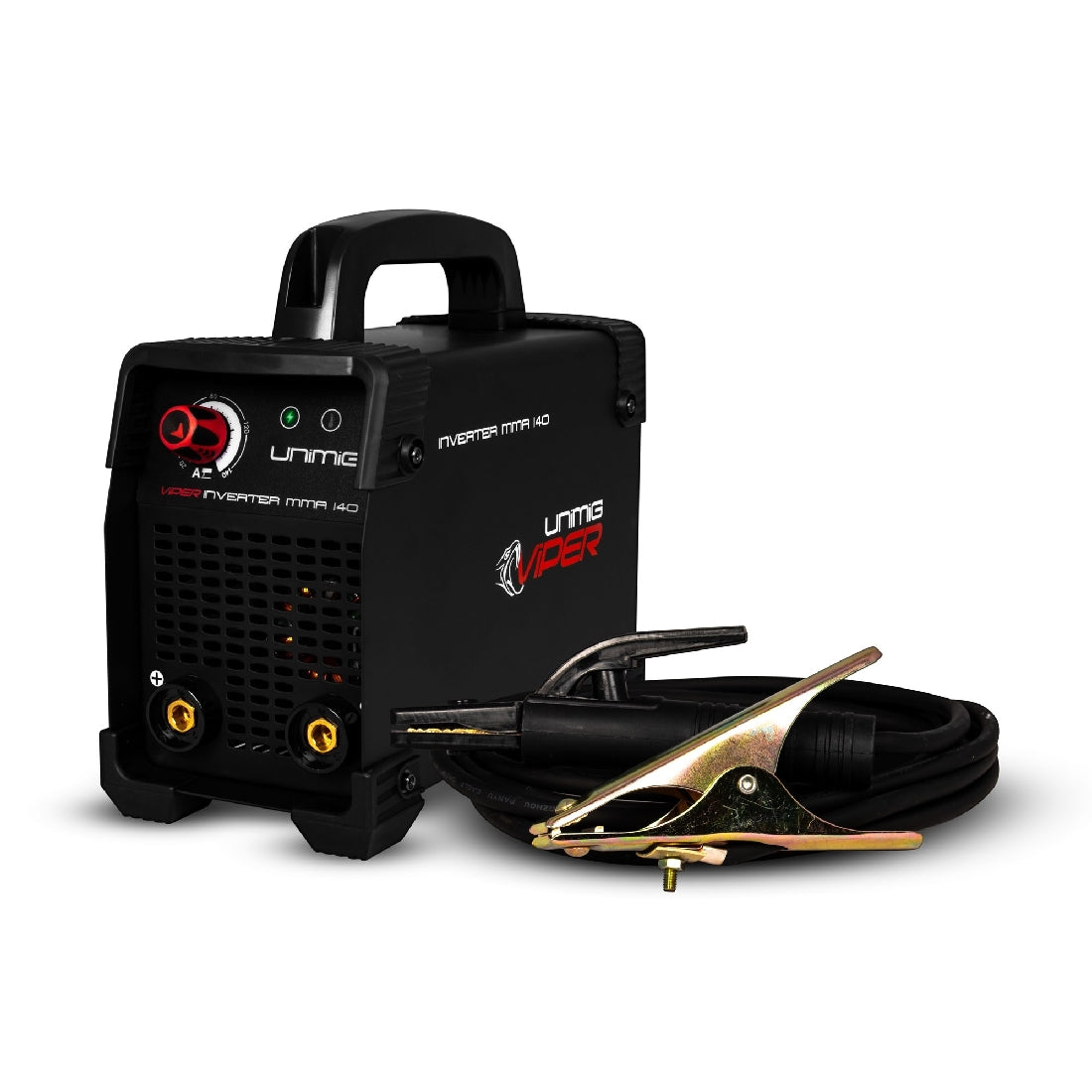

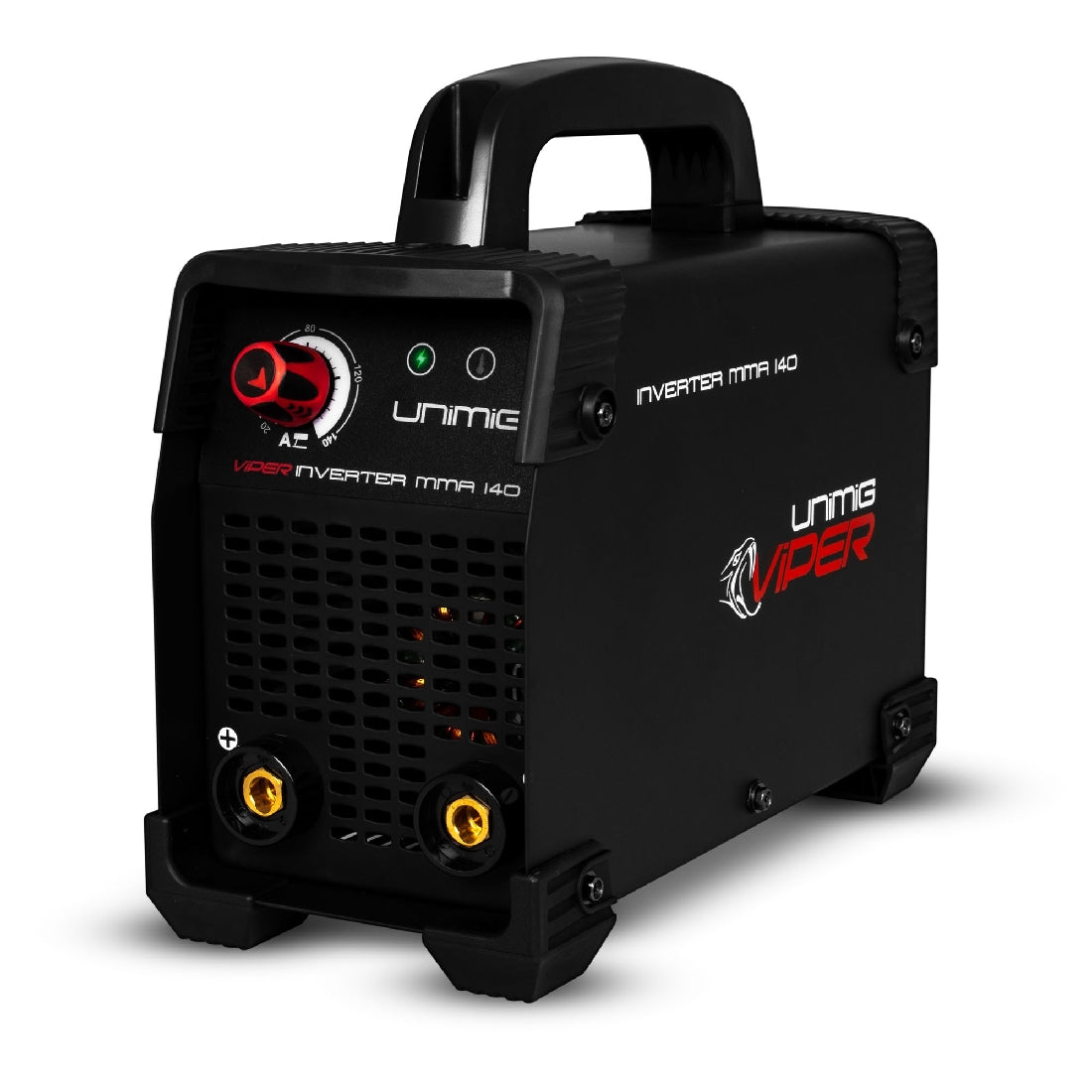

Unimig Viper Arc 140

Don’t let the pros have all the fun. The VIPER™ ARC 140 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality UNIMIG is recognised for throughout the industry. The VIPER™ ARC 140 also features DC Scratch Start TIG, in case you needed another excuse to purchase.

10 AMP PLUG

CONNECT TO ANY STANDARD OUTLET.

DC SCRATCH START TIG

BASIC TIG FUNCTIONALITY.

THERMAL OVERLOAD PROTECTION

PREVENTS MACHINE FROM EXCEEDING A SAFE OPERATING TEMPERATURE.

10 AMP PLUG



Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.



• SPECIFICATIONS
• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: KUMJRVA140

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

6.5

Ieff (A)

10

RATED OUTPUT

10-140A

NO LOAD VOLTAGE (V)

62.9

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.65

MINIMUM GENERATOR (kVA)

8.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Copper, Cast Iron

WARRANTY (Years)

1

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Scratch Start

TIG WELDING THICKNESS RANGE

1-5mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-140A

STICK DUTY CYCLE @ 40°C

15% @ 140A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

2-8mm

SIZE & WEIGHT

DIMENSIONS (mm)

295x135x270mm

WEIGHT (kg)

3.8kg
